利用Dockerfile制作java运行环境的镜像的方法步骤

当前用到的环境是：

Centos 7.5
docker-ce 18.06.1-ce

1、先用centos7.5.1804的基础镜像把一些运行需要的环境装好
在/app目录下创建相对应的文件目录
[root@node2 /app/]# mkdir dockerfile/{web/{nginx,tomcat,jdk,apache},system/{centos,ubuntu,redhat}} -pv[root@node2 /app]# cd dockerfile/system/centos/[root@node2 /app/dockerfile/system/centos]# mkdir centos-7.5-base[root@node2 /app/dockerfile/system/centos]# cd centos-7.5-base创建一个Dockerfile文件
[root@node2 /app/dockerfile/system/centos/centos-7.5-base]#vim Dockerfile #Nginx Base ImageFROM centos:7.5.1804LABEL maintaier "mr.luo "RUN yum install -y vim wget pcre pcre-devel zlib zlib-devel openssl openssl-devel iproute net-tools iotop创建一个用于直接docker build脚本后续直接执行脚本即可
[root@node2 /app/dockerfile/system/centos/centos-7.5-base]#vim build-command.sh #!/bin/bashdocker build -t 172.20.7.50/baseimages/centos-base:7.5.1804 .执行脚本创建新镜像
[root@node2 /app/dockerfile/system/centos/centos-7.5-base]#bash build-command.sh Sending build context to Docker daemon 3.072kBStep 1/3 : FROM centos:7.5.1804---> 76d6bc25b8a5Step 2/3 : LABEL maintaier 'mr.luo@dklwj.com'---> Using cache---> 05ccd970d71dStep 3/3 : RUN yum install -y vim wgetpcre pcre-devel zlib zlib-devel openssl openssl-devel iproute net-tools iotop---> Using cache---> 73d683a54877Successfully built 73d683a54877Successfully tagged 172.20.7.50/baseimages/centos-base:7.5.18042、利用制作好的基础环境镜像制作jdk的镜像
从centos-7.5-base退出来在当前目录创建一个jdk1.8的目录.
[root@node2 /app/dockerfile/system/centos/centos-7.5-base]# cd ..[root@node2 /app/dockerfile/system/centos]# mkdir jdk1.8[root@node2 /app/dockerfile/system/centos]# cd jdk1.8/创建Dockerfile
[root@node2 /app/dockerfile/system/centos/jdk1.8]#vim Dockerfile FROM 172.20.7.50/baseimages/centos-base:7.5.1804LABEL maintainer "mr.luo "ADD jdk-8u162-linux-x64.tar.gz /usr/local/src/RUN ln -s /usr/local/src/jdk1.8.0_162/ /usr/local/jdkADD profile /etc/profileENV JAVA_HOME /usr/local/jdkENV JRE_HOME $JAVA_HOME/jreENV CLASSPATH $JAVA_HOME/lib/:$JRE_HOME/lib/ENV PATH $PATH:$JAVA_HOME/binRUN rm -rf /etc/localtime && ln -snf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && echo "Asia/Shanghai" > /etc/timezone上传jdk包到当前目录下：
复制/etc/profile文件到当前目录
[root@node2 /app/dockerfile/system/centos/jdk1.8]#cp profile /etc/profile在profile最后添加jdk的环境变量
[root@node2 /app/dockerfile/system/centos/jdk1.8]#vim profile export JAVA_HOME=/usr/local/jdkexport TOMCAT_HOME=/apps/tomcatexport PATH=$JAVA_HOME/bin:$JAVA_HOME/jre/bin:$TOMCAT_HOME/bin:$PATHexport CLASSPATH=.$CLASSPATH:$JAVA_HOME/lib:$JAVA_HOME/jre/lib:$JAVA_HOME/lib/tools.jar创建docker build的shell脚本
[root@node2 /app/dockerfile/system/centos/jdk1.8]#vim build-command.sh #!/bin/bash#docker build -t 172.20.7.50/baseimages/centos7.5-jdk:8.162 .开始制作镜像
[root@node2 /app/dockerfile/system/centos/jdk1.8]#bash build-command.shSending build context to Docker daemon 189.8MBStep 1/10 : FROM 172.20.7.50/baseimages/centos-base:7.5.1804---> 73d683a54877Step 2/10 : LABEL maintainer "mr.luo "---> Running in 65604dd1f392Removing intermediate container 65604dd1f392---> c4720603ce38Step 3/10 : ADD jdk-8u162-linux-x64.tar.gz /usr/local/src/---> bc98adffe1b4Step 4/10 : RUN ln -s /usr/local/src/jdk1.8.0_162/ /usr/local/jdk---> Running in df5a6f67f9fdRemoving intermediate container df5a6f67f9fd---> 0ae1af0416c6Step 5/10 : ADD profile /etc/profile---> eee23a69c0c8Step 6/10 : ENV JAVA_HOME /usr/local/jdk---> Running in edbef8563e83Removing intermediate container edbef8563e83---> 5f783f642054Step 7/10 : ENV JRE_HOME $JAVA_HOME/jre---> Running in fa0e5f08e732Removing intermediate container fa0e5f08e732---> 28a4d31463d4Step 8/10 : ENV CLASSPATH $JAVA_HOME/lib/:$JRE_HOME/lib/---> Running in 3c4ebb04ac62Removing intermediate container 3c4ebb04ac62---> 245f2dd82d52Step 9/10 : ENV PATH $PATH:$JAVA_HOME/bin---> Running in 4f5e6093f0a9Removing intermediate container 4f5e6093f0a9---> 5be0e6261eeaStep 10/10 : RUN rm -rf /etc/localtime && ln -snf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && echo "Asia/Shanghai" > /etc/timezone---> Running in 52d8cb8463a8Removing intermediate container 52d8cb8463a8---> 9fb867ae8c39Successfully built 9fb867ae8c39Successfully tagged 172.20.7.50/baseimages/centos7.5-jdk:8.162查看当前目录下的文件
[root@node2 /app/dockerfile/system/centos/jdk1.8]#lsbuild-command.sh Dockerfile jdk-8u162-linux-x64.tar.gz profile检查制作好的镜像是否能正常使用
[root@node2 /app/dockerfile/system/centos/jdk1.8]#docker run -it --rm 172.20.7.50/baseimages/centos7.5-jdk:8.162 bash[root@919844b164dc /]# java -version java version "1.8.0_162"Java(TM) SE Runtime Environment (build 1.8.0_162-b12)Java HotSpot(TM) 64-Bit Server VM (build 25.162-b12, mixed mode)[root@919844b164dc /]# dateThu Nov 22 21:17:49 CST 2018[root@919844b164dc /]# exitexit3、做Tomcat的镜像
进入之前建好的/app/dockerfile/web/tomcat下,创建一个tomcat-base目录
[root@node2 ~]# cd /app/dockerfile/web/tomcat [root@node2 /app/dockerfile/web/tomcat]#mkdir tomcat-base创建Dockerfile
[root@node2 /app/dockerfile/web/tomcat/tomcat-base]#vim Dockerfile FROM 172.20.7.50/baseimages/centos7.5-jdk:8.162LABEL maintainer "mr.luo "RUN mkdir /appsADD apache-tomcat-8.5.33.tar.gz /appsRUN ln -s /apps/apache-tomcat-8.5.33 /apps/tomcat创建docker build脚本
[root@node2 /app/dockerfile/web/tomcat/tomcat-base]#vim build-command.sh #!/bin/bashdocker build -t 172.20.7.50/baseimages/centos-tomcat:8.5.33 .执行创建镜像文件：
[root@node2 /app/dockerfile/web/tomcat/tomcat-base]#bash build-command.shSending build context to Docker daemon 9.625MBStep 1/5 : FROM 172.20.7.50/baseimages/centos7.5-jdk:8.162---> 9fb867ae8c39Step 2/5 : LABEL maintainer "mr.luo "---> Running in 9ce6fc4d2850Removing intermediate container 9ce6fc4d2850---> b68755061b28Step 3/5 : RUN mkdir /apps---> Running in b483c6b127f2Removing intermediate container b483c6b127f2---> 605c1a048a5fStep 4/5 : ADD apache-tomcat-8.5.33.tar.gz /apps---> 3c44f96ed41cStep 5/5 : RUN ln -s /apps/apache-tomcat-8.5.33 /apps/tomcat---> Running in 4c1aa39a6c92Removing intermediate container 4c1aa39a6c92---> 9b3bc4f58cc9Successfully built 9b3bc4f58cc9Successfully tagged 172.20.7.50/baseimages/centos-tomcat:8.5.33利用创建好的镜像起一个容器检查下是否成功制作好，启动时加上-p暴露端口，在物理机上测试下

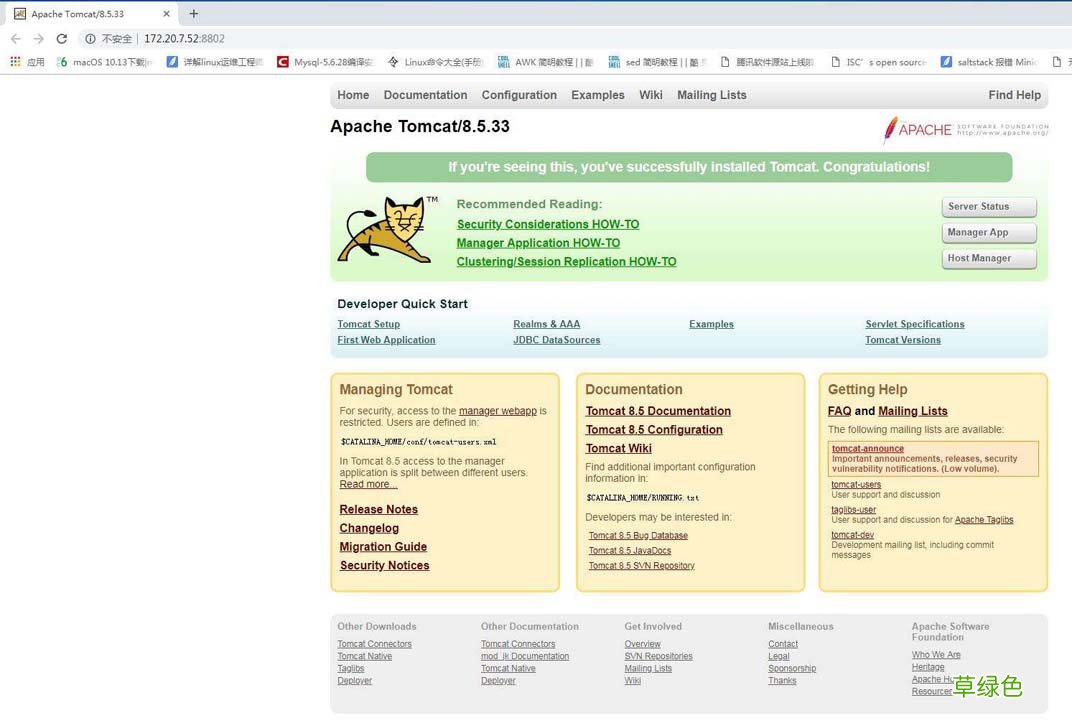

[root@node2 /app/dockerfile/web/tomcat/tomcat-base]#docker run -it -p 8802:8080 172.20.7.50/baseimages/centos-tomcat:8.5.33 bash[root@917b2c2262a3 /]# cd /apps/[root@917b2c2262a3 apps]# lltotal 0drwxr-xr-x 9 root root 220 Nov 22 22:08 apache-tomcat-8.5.33lrwxrwxrwx 1 root root 26 Nov 22 22:08 tomcat -> /apps/apache-tomcat-8.5.33[root@917b2c2262a3 apps]# ./tomcat/bin/catalina.sh startUsing CATALINA_BASE:/apps/tomcatUsing CATALINA_HOME:/apps/tomcatUsing CATALINA_TMPDIR: /apps/tomcat/tempUsing JRE_HOME:/usr/local/jdk/jreUsing CLASSPATH:/apps/tomcat/bin/bootstrap.jar:/apps/tomcat/bin/tomcat-juli.jarTomcat started.在客户端用浏览器测试
利用Dockerfile制作java运行环境的镜像的方法步骤

文章插图
【利用Dockerfile制作java运行环境的镜像的方法步骤】以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持考高分网。
