Centos7配置fastdfs和nginx分布式文件存储系统实现过程解析

1、安装libfastcommon-1.0.43，安装包可以在大佬的https://github.com/happyfish100/libfastcommon/releases下载

[root@localhost Downloads]# tar -zxvf libfastcommon-1.0.43.tar.gz
# 解压后进入目录进行编译并安装
[root@localhost libfastcommon-1.0.43]#cd libfastcommon-1.0.43
[root@localhost libfastcommon-1.0.43]#make
[root@localhost libfastcommon-1.0.43]#make install

注意：libfastcommon安装好后会在/usr/lib64 目录下生成 libfastcommon.so 库文件；由于FastDFS程序引用usr/lib目录所以需要将/usr/lib64下的库文件拷贝至/usr/lib下
cp /usr/lib64/libfastcommon.so /usr/lib
2、安装fastdfs，安装包可以在大佬的https://github.com/happyfish100/fastdfs/releases下载

#解压到当前目录
tar -zxvf fastdfs-6.06.tar.gz
# 进入到目录进行编译与安装
make.sh
make.sh install

安装成功后，将/conf下的文件复制到/etc/fdfs中
[root@localhost conf]# lltotal 92-rw-rw-r--. 1 root root 23981 Dec 31 07:36 anti-steal.jpg-rw-rw-r--. 1 root root 1909 Dec 31 07:36 client.conf-rw-rw-r--. 1 root root 965 Dec 31 07:36 http.conf-rw-rw-r--. 1 root root 31172 Dec 31 07:36 mime.types-rw-rw-r--. 1 root root 10246 Dec 31 07:36 storage.conf-rw-rw-r--. 1 root root 620 Dec 31 07:36 storage_ids.conf-rw-rw-r--. 1 root root 9138 Dec 31 07:36 tracker.conf[root@localhost conf]# cd ..[root@localhost fastdfs-6.06]# cp /conf/* /etc/fdfs[root@localhost fastdfs-6.06]# ll /etc/fdfstotal 128-rw-r--r--. 1 root root 23981 Jun 21 02:16 anti-steal.jpg-rw-r--r--. 1 root root 1904 Jun 21 02:24 client.conf-rw-r--r--. 1 root root 1909 Jun 21 02:15 client.conf.sample-rw-r--r--. 1 root root 965 Jun 21 02:54 http.conf-rw-r--r--. 1 root root 31172 Jun 21 02:54 mime.types-rw-r--r--. 1 root root 3738 Jun 21 02:41 mod_fastdfs.conf-rw-r--r--. 1 root root 10238 Jun 21 02:23 storage.conf-rw-r--r--. 1 root root 10246 Jun 21 02:15 storage.conf.sample-rw-r--r--. 1 root root 620 Jun 21 02:16 storage_ids.conf-rw-r--r--. 1 root root 620 Jun 21 02:15 storage_ids.conf.sample-rw-r--r--. 1 root root 9129 Jun 21 02:18 tracker.conf-rw-r--r--. 1 root root 9138 Jun 21 02:15 tracker.conf.sample[root@localhost fastdfs-6.06]#3、配置和启动tracker
# 进入/etc/fdfs目录中cd /etc/fdfs# 拷贝一份新的tracker配置文件cp tracker.conf.sample tracker.conf#修改tracker.conf ; vim tracker.conf# /home/fastdfs用于存放tracker的data和logbase_path=/home/yuqing/fastdfs 改为: base_path=/home/fastdfshttp.server_port 改为： 80# 启动tracker/usr/bin/fdfs_trackerd /etc/fdfs/tracker.conf restart4、配置和启动storage
# 进入/etc/fdfs目录中cd /etc/fdfs# 拷贝一份新的tracker配置文件cp storage.conf.sample storage.conf# 修改storage.conf ; vim storage.confgroup_name=group1 #配置组名base_path=/home/yuqing/fastdfs 改为: base_path=/home/fastdfs#store存放文件的位置(store_path)store_path0=/home/yuqing/fastdfs 改为： store_path0=/home/fdfs_storage #如果有多个挂载磁盘则定义多个store_path，如下#store_path1=.....#store_path2=......#配置tracker服务器:IPtracker_server=192.168.172.20:22122#如果有多个则配置多个tracker#tracker_server=192.168.101.4:22122#配置http端口,使用默认端口http.server_port=8888#启动storage，运行命令如下：/usr/bin/fdfs_storaged /etc/fdfs/storage.conf restart#启动完成后进入 /home/fdfs_storage/data 目录下，显示目录如下[root@localhost home]# cd fdfs_storage/[root@localhost fdfs_storage]# lsdata[root@localhost fdfs_storage]# cd data/[root@localhost data]# ls00 0A 14 1E 28 32 3C 46 50 5A 64 6E 78 82 8C 96 A0 AA B4 BE C8 D2 DC E6 F0 FA01 0B 15 1F 29 33 3D 47 51 5B 65 6F 79 83 8D 97 A1 AB B5 BF C9 D3 DD E7 F1 FB02 0C 16 20 2A 34 3E 48 52 5C 66 70 7A 84 8E 98 A2 AC B6 C0 CA D4 DE E8 F2 FC03 0D 17 21 2B 35 3F 49 53 5D 67 71 7B 85 8F 99 A3 AD B7 C1 CB D5 DF E9 F3 FD04 0E 18 22 2C 36 40 4A 54 5E 68 72 7C 86 90 9A A4 AE B8 C2 CC D6 E0 EA F4 FE05 0F 19 23 2D 37 41 4B 55 5F 69 73 7D 87 91 9B A5 AF B9 C3 CD D7 E1 EB F5 FF06 10 1A 24 2E 38 42 4C 56 60 6A 74 7E 88 92 9C A6 B0 BA C4 CE D8 E2 EC F607 11 1B 25 2F 39 43 4D 57 61 6B 75 7F 89 93 9D A7 B1 BB C5 CF D9 E3 ED F708 12 1C 26 30 3A 44 4E 58 62 6C 76 80 8A 94 9E A8 B2 BC C6 D0 DA E4 EE F809 13 1D 27 31 3B 45 4F 59 63 6D 77 81 8B 95 9F A9 B3 BD C7 D1 DB E5 EF F9[root@localhost data]#5、使用fastdfs自带工具测试上传文件
# 切换目录到 /etc/fdfs/ 目录下cd /etc/fdfs# 拷贝一份新的client配置文件cp client.conf.sample client.conf# 修改client.conf ; vim client.confbase_path = /home/fastdfstracker_server = 192.168.52.133:22122#tracker_server = 192.168.0.197:22122#进行上传文件的测试，运行如下：/usr/bin/fdfs_test /etc/fdfs/client.conf upload wyc01.jpg#结果：[youth@localhost Pictures]$ /usr/bin/fdfs_test /etc/fdfs/client.conf upload wyc01.jpg This is FastDFS client test program v6.06Copyright (C) 2008, Happy Fish / YuQingFastDFS may be copied only under the terms of the GNU GeneralPublic License V3, which may be found in the FastDFS source kit.Please visit the FastDFS Home Page http://www.fastken.com/ for more detail.[2020-06-21 03:54:35] DEBUG - base_path=/home/fastdfs, connect_timeout=5, network_timeout=60, tracker_server_count=1, anti_steal_token=0, anti_steal_secret_key length=0, use_connection_pool=0, g_connection_pool_max_idle_time=3600s, use_storage_id=0, storage server id count: 0tracker_query_storage_store_list_without_group:server 1. group_name=, ip_addr=192.168.52.133, port=23000group_name=group1, ip_addr=192.168.52.133, port=23000storage_upload_by_filenamegroup_name=group1, remote_filename=M00/00/00/wKg0hV7uaXyALZfuAABDP6pWIGE814.jpgsource ip address: 192.168.52.133file timestamp=2020-06-21 03:54:36file size=17215file crc32=2857771105example file url: http://192.168.52.133/group1/M00/00/00/wKg0hV7uaXyALZfuAABDP6pWIGE814.jpgstorage_upload_slave_by_filenamegroup_name=group1, remote_filename=M00/00/00/wKg0hV7uaXyALZfuAABDP6pWIGE814_big.jpgsource ip address: 192.168.52.133file timestamp=2020-06-21 03:54:36file size=17215file crc32=2857771105example file url: http://192.168.52.133/group1/M00/00/00/wKg0hV7uaXyALZfuAABDP6pWIGE814_big.jpg[youth@localhost Pictures]$注意：http://192.168.52.133/group1/M00/00/00/wKg0hV7uaXyALZfuAABDP6pWIGE814.jpg就是刚才上传图片的链接，但是现在没有整合nginx，所以无法通过http访问
6、fastdfs和nginx整合
①安装fastdfs-nginx-module，安装包可以在大佬的https://github.com/happyfish100/fastdfs-nginx-module/releases下载
#解压tar -zxvf fastdfs-nginx-module_v1.16.tar.gz# 进入到目录里修改conf配置cd /usr/local/fastdfs-nginx-module/src/vim conf HTTP_MODULES="$HTTP_MODULES ngx_http_fastdfs_module" NGX_ADDON_SRCS="$NGX_ADDON_SRCS $ngx_addon_dir/ngx_http_fastdfs_module.c" # 只修改这里，把local删除 CORE_INCS="$CORE_INCS /usr/include" CORE_LIBS="$CORE_LIBS -lfastcommon -lfdfsclient" CFLAGS="$CFLAGS -D_FILE_OFFSET_BITS=64 -DFDFS_OUTPUT_CHUNK_SIZE='256*1024' -DFDFS_MOD_CONF_FILENAME='\"/etc/fdfs/mod_fastdfs.conf\"'"②将fastdfs-nginx-module/src下的mod_fastdfs.conf拷贝至/etc/fdfs/下
cp mod_fastdfs.conf /etc/fdfs/
　③并修改 /etc/fdfs/mod_fastdfs.conf 的内容；vi /etc/fdfs/mod_fastdfs.conf

base_path=/home/fastdfs
tracker_server=192.168.172.20:22122
#tracker_server=192.168.172.20:22122 #(多个tracker配置多行)
url_have_group_name=true #url中包含group名称
store_path0=/home/fdfs_storage #指定文件存储路径（上面配置的store路径）

7、安装nginx
# nginx官网上有安装包，可以直接下载# 解压tar -zxvf nginx-1.8.0.tar.gz# 进入目录，配置命令# --prefix是nginx的安装路径# --add-module是fastdfs-nginx-module解压后的文件路径./configure \--prefix=/usr/local/nginx \--pid-path=/var/run/nginx/nginx.pid \--lock-path=/var/lock/nginx.lock \--error-log-path=/var/log/nginx/error.log \--http-log-path=/var/log/nginx/access.log \--with-http_gzip_static_module \--http-client-body-temp-path=/var/temp/nginx/client \--http-proxy-temp-path=/var/temp/nginx/proxy \--http-fastcgi-temp-path=/var/temp/nginx/fastcgi \--http-uwsgi-temp-path=/var/temp/nginx/uwsgi \--http-scgi-temp-path=/var/temp/nginx/scgi \--add-module=/usr/local/fastdfs-nginx-module/src# 编译并安装make && make install# 复制nginx-1.19.0/conf配置文件夹（解压后的nginx）里面的两个文件到/etc/fdfscp http.conf mime.types /etc/fdfs/注意:上边将临时文件目录指定为/var/temp/nginx，需要在/var下创建temp及nginx目录；我指定了pid-path，所以也要在/var/run文件夹下创建一个nginx,然后在nginx文件夹下创建一个nginx.pid，否则启动nginx时会报错nginx: [emerg] open() "/var/run/nginx/nginx.pid" failed (2: No such file or directory)，还是建议不指定了，这个坑太深了
8、修改nginx配置文件
server {listen80;#server_name localhost;server_name 192.168.52.133;#charset koi8-r;#access_log logs/host.access.log main;location ~/group([1~9])/M00/{root /home/fdsf_storage/data;ngx_fastdfs_module;}location / {root html;index index.html index.htm;}9、启动nginx，因为nginx默认是80端口，确保80端口没有被占用，如果占用就kill掉；确保防火墙firewall允许外部设备访问服务器

/use/local/nginx/sbin/nginx
[root@localhost fdfs]# ps -ef | grep nginx
root 7466 1 0 03:12 ? 00:00:00 nginx: master process nginx
nobody 7590 7466 0 03:21 ? 00:00:00 nginx: worker process
root 8514 2806 0 04:17 pts/0 00:00:00 grep --color=auto nginx
[root@localhost fdfs]#

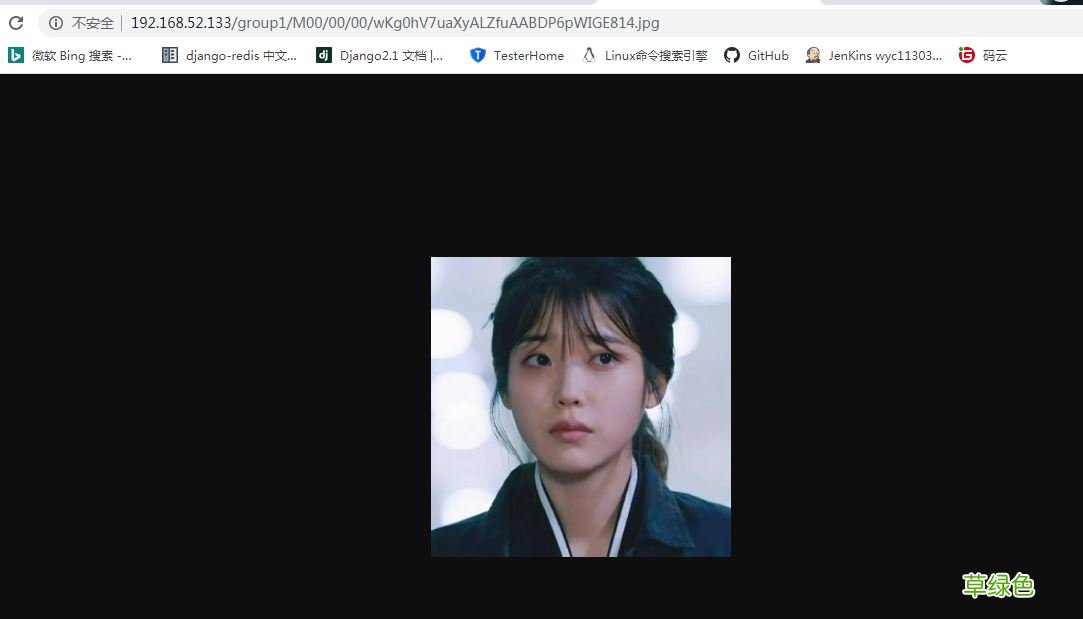

10、通过外部设备访问fastdfs文件系统的图片

文章插图
