docker 文件存放路径, 修改端口映射操作方式

【docker 文件存放路径, 修改端口映射操作方式】如何获取容器的启动命令容器早已创建好，如何得知它的启动参数(数据挂载到哪)
#假设通过如下命令启动了一个容器docker run -d --name mysql_cdh \-p 3306:3306 \-e MYSQL_ROOT_PASSWORD=123456 \-v mysql-data:/var/lib/mysql \--restart=always \mysql:5.5 --character-set-server=utf8#如何通过容器名得知启动参数[root@jenkins ~]# docker inspect mysql_cdh[ {"Id": "3aad772538b5e86705d3358362517a08d53f951aa6522e2881321135f05c8872","Created": "2019-09-25T01:43:37.720505875Z","Path": "docker-entrypoint.sh","Args": ["--character-set-server=utf8"],..."Name": "/mysql_cdh","HostConfig": {"Binds": ["mysql-data:/var/lib/mysql"],..."NetworkMode": "default","PortBindings": {"3306/tcp": [{"HostIp": "","HostPort": "3306"}]},"RestartPolicy": {"Name": "always","MaximumRetryCount": 0},"Mounts": [{"Type": "volume","Name": "mysql-data","Source": "/var/lib/docker/volumes/mysql-data/_data","Destination": "/var/lib/mysql","Driver": "local","Mode": "z","RW": true,"Propagation": ""}],"Config": {"Hostname": "3aad772538b5",..."ExposedPorts": {"3306/tcp": {}},..."Env": ["MYSQL_ROOT_PASSWORD=123456","PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/local/mysql/bin:/usr/local/mysql/scripts","GOSU_VERSION=1.7","MYSQL_MAJOR=5.5","MYSQL_VERSION=5.5.62"],"Cmd": ["--character-set-server=utf8"],1, 容器层：文件存放路径#1, 启动容器[root@master ~]# docker run -d --name nginx2 nginxa9c9f31cdccf13c3385f3de33443325d2e14d69458e6d679e54c8cf9e5ff24c8#2, 获取容器id[root@master ~]# docker inspect nginx2 | grep -i id [root@master ~]# docker inspect nginx2 | grep -i id"Id": "a9c9f31cdccf13c3385f3de33443325d2e14d69458e6d679e54c8cf9e5ff24c8","Pid": 2069,"ExecIDs": null,"ContainerIDFile": "",#查看容器临时文件--每次创建时随机生成的文件(容器层)# /var/lib/docker/containers/容器id[root@master ~]# docker inspect nginx2 | grep -i path "Path": "nginx", "ResolvConfPath": "/var/lib/docker/containers/a9c9f31cdccf13c3385f3de33443325d2e14d69458e6d679e54c8cf9e5ff24c8/resolv.conf", "HostnamePath": "/var/lib/docker/containers/a9c9f31cdccf13c3385f3de33443325d2e14d69458e6d679e54c8cf9e5ff24c8/hostname", "HostsPath": "/var/lib/docker/containers/a9c9f31cdccf13c3385f3de33443325d2e14d69458e6d679e54c8cf9e5ff24c8/hosts", "LogPath": "/var/lib/docker/containers/a9c9f31cdccf13c3385f3de33443325d2e14d69458e6d679e54c8cf9e5ff24c8/a9c9f31cdccf13c3385f3de33443325d2e14d69458e6d679e54c8cf9e5ff24c8-json.log",后天修改容器端口
a, 先提交旧容器为新的镜像，再启动新容器需要确保：数据卷映射完全一致（新旧的容器，在数据卷上要一致）
[root1@c7-docker ~]# docker inspect mysql_port |egrep -i 'volum|Mount' -A 2"Volumes": {"/var/lib/mysql": {}},--"Volumes": {"/var/lib/mysql": {}},保存容器为镜像，再启动新容器是，添加端口映射
############## 1, 启动一个容器 ############## [root1@c7-docker ~]# docker run --name t1 -d -e MYSQL_ROOT_PASSWORD=123456 -v mysql-test-dir:/var/lib/mysql/ -p 3308:3306 mysql:5.553f2a3c53d4c6769897ee484c3d2ff4e3f82ea1e390d4950b2162c08af05d7cc[root1@c7-docker ~]# docker psCONTAINER IDIMAGE COMMANDCREATEDSTATUSPORTSNAMES53f2a3c53d4cmysql:5.5"docker-entrypoint.s…" 3 seconds agoUp 3 seconds0.0.0.0:3308->3306/tcp t1[root1@c7-docker ~]# mysql -uroot -p123456 -P3308 --protocol tcpWelcome to the MariaDB monitor. Commands end with ; or \g.Your MySQL connection id is 1Server version: 5.5.62 MySQL Community Server (GPL)MySQL [(none)]> show databases;+--------------------+| Database|+--------------------+| information_schema || mysql|| performance_schema |+--------------------+3 rows in set (0.00 sec)MySQL [(none)]> create database test;Query OK, 1 row affected (0.00 sec)MySQL [(none)]> use test;Database changedMySQL [test]> create table t1(id int);Query OK, 0 rows affected (0.00 sec)MySQL [test]> insert into t1 values(1),(2),(3);Query OK, 3 rows affected (0.00 sec)Records: 3 Duplicates: 0 Warnings: 0MySQL [test]> select * from t1;+------+| id |+------+| 1 || 2 || 3 |+------+3 rows in set (0.00 sec) ############## 2, 提交当前容器环境--保存为新的镜像 ############## [root1@c7-docker ~]# docker commit -m mysql_test_chag-port_img t1 mysql_portsha256:9f90be3c200c6a8b535478375c4caf86d589d231afae1293d28026f9248f8ae3[root1@c7-docker ~]# docker imagesREPOSITORYTAGIMAGE IDCREATEDSIZEmysql_portlatest9f90be3c200c3 seconds ago205MBmysql5.5d404d78aa79718 months ago205MB############## 3, 停止旧容器, 启动新容器 ############## [root1@c7-docker ~]# docker stop t1t1[root1@c7-docker ~]# docker run --name t2 -d -v mysql-test-dir:/var/lib/mysql/ -p 3309:3306 mysql_portfd7cefe55db8bb2687ab044ff1473f0c935ac5ce867df81b3b13f570e9026868[root1@c7-docker ~]# docker psCONTAINER IDIMAGE COMMANDCREATEDSTATUSPORTSNAMESfd7cefe55db8mysql_port"docker-entrypoint.s…" 3 seconds agoUp 2 seconds0.0.0.0:3309->3306/tcp t2[root1@c7-docker ~]# mysql -uroot -p123456 -P3309 --protocol tcpWelcome to the MariaDB monitor. Commands end with ; or \g.Your MySQL connection id is 2Server version: 5.5.62 MySQL Community Server (GPL)MySQL [(none)]> show databases;MySQL [(none)]> use test;Reading table information for completion of table and column namesYou can turn off this feature to get a quicker startup with -ADatabase changedMySQL [test]> select * from t1;+------+| id |+------+| 1 || 2 || 3 |+------+3 rows in set (0.00 sec)b, 修改容器配置文件置文件：hostconfig.json要先停止docker服务,否则不生效
通过容器层文件，找到配置文件hostconfig.json ，修改容器映射的端口
[root@docker a9c9f31cd...ff24c8]# pwd/var/lib/docker/containers/d93185e3a0....2e544ccfa[root@docker a9c9f31cd...ff24c8]# cat hostconfig.json {"Binds":["/dockersuperset:/home/superset"],"ContainerIDFile":"","LogConfig":{"Type":"json-file","Config":{}},"NetworkMode":"default","PortBindings":{"8088/tcp":[{"HostIp":"","HostPort":"8099"}]}......2, 镜像层：文件存放路径[root@master ~]# docker image inspect nginx |tail -n 22"GraphDriver": {"Data": {"LowerDir": "/var/lib/docker/overlay2/bf20cf788cc053f00ff1467525d50e19bd1cf07a2167f72511bdfcb28918a472/diff:/var/lib/docker/overlay2/317d80bb7ae58ed288be9ebd84aeb5b4b3a1c06f3211f5d1f32d89b629d1876e/diff","MergedDir": "/var/lib/docker/overlay2/7782d0eb292fdc8bbd73bf9bae2d65468e8aba0bcd6baed55ac348618b80ae16/merged","UpperDir": "/var/lib/docker/overlay2/7782d0eb292fdc8bbd73bf9bae2d65468e8aba0bcd6baed55ac348618b80ae16/diff","WorkDir": "/var/lib/docker/overlay2/7782d0eb292fdc8bbd73bf9bae2d65468e8aba0bcd6baed55ac348618b80ae16/work"},"Name": "overlay2"},a, 容器层,镜像层：关联I, 子容器：拷贝镜像的文件

文章插图

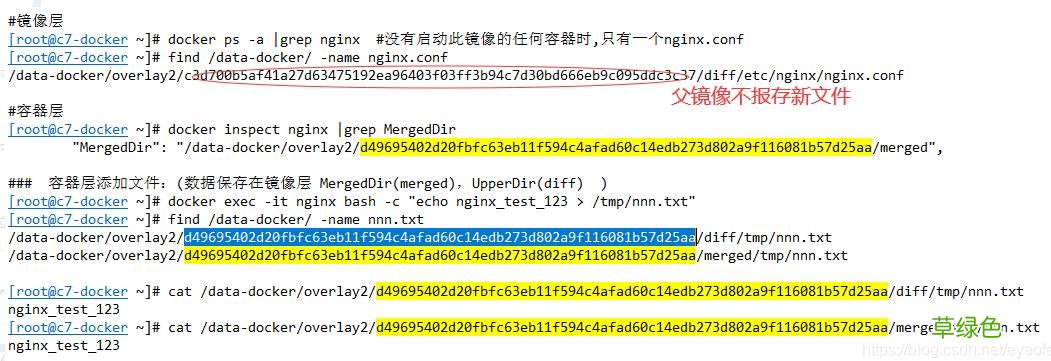

II, 子容器：添加新文件

文章插图

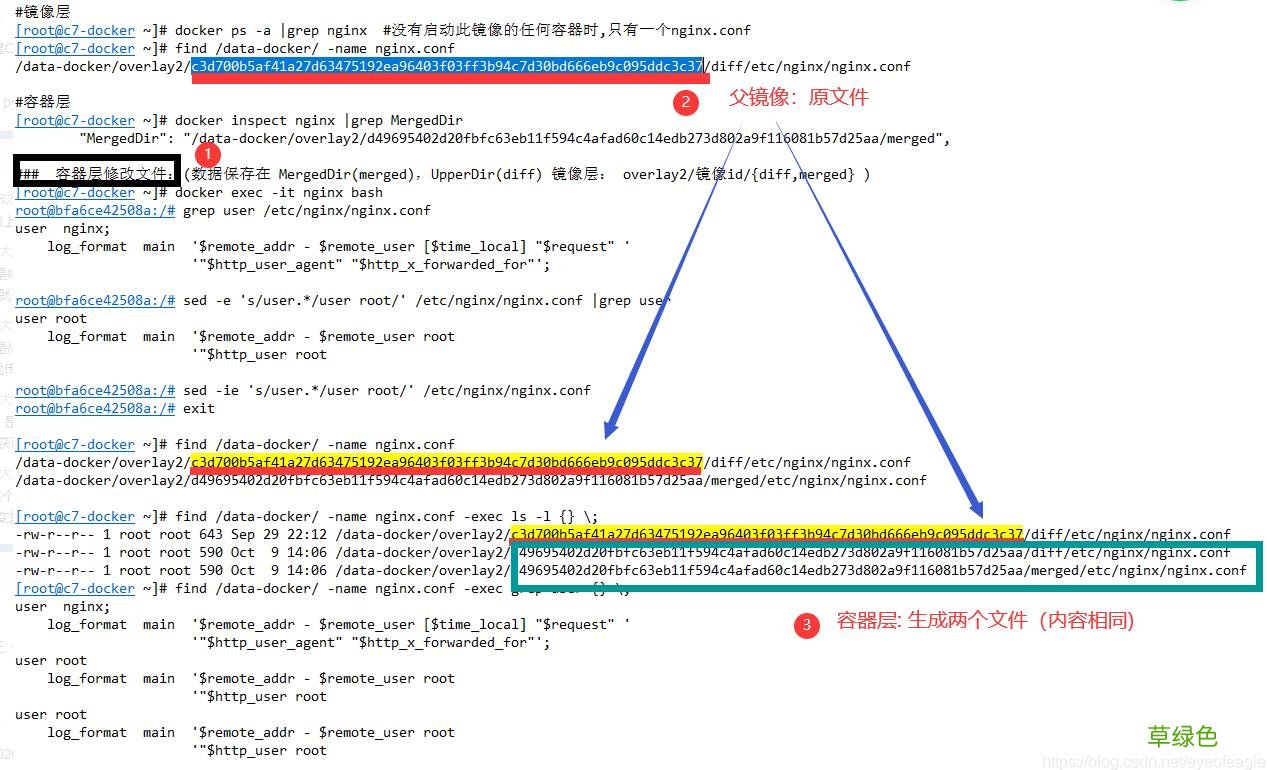

III, 子容器：修改由镜像拷贝的文件

文章插图
b, 在镜像层(文件存储目录) ，修改配置文件# 进入镜容器文件存储目录，修改配置文件[root@master d37ff828e6308...0c0599b]# ls diff/run/nginx.pid[root@master d37ff828e6308...0c0599b]# ls diff/var/cache/nginx/client_temp fastcgi_temp proxy_temp scgi_temp uwsgi_temp[root@master d37ff828e6308...0c0599b]# ls merged/bin/dev/etc/lib/media/opt/root/sbin/sys/usr/boot/.dockerenv home/lib64/mnt/proc/run/srv/tmp/var/[root@master d37ff828e6308...0c0599b]# ls merged/etc/nginx/conf.d fastcgi_params koi-utf koi-win mime.types modules nginx.conf scgi_params uwsgi_params win-utf[root@master d37ff828e6308...0c0599b]# head merged/etc/nginx/nginx.conf user nginx;worker_processes 1;#在此处修改配置文件，把user nginx; worker_process 1; 这两行的分号去掉，看容器里面的配置是否更改[root@master d37ff828e6308...0c0599b]# head merged/etc/nginx/nginx.conf -n 3user nginxworker_processes 1#登陆容器，查看修改的配置：验证是否生效[root@master d37ff828e6308...0c0599b]# docker exec -it nginx2 bashroot@a9c9f31cdccf:/# head /etc/nginx/nginx.conf -n 3user nginxworker_processes 13, 修改默认存储路径a, 重建/var/lib/docker目录#备份数据到新的存放路径service docker stopmkdir /docker.bakmv /var/lib/docker/* /docker.bak#创建软连接mkdir /home/docker-datamv /docker.bak/* /home/docker-data/ && rmdir /docker.bakln -s /home/docker-data /var/lib/dockerb, 修改配置vi /usr/lib/systemd/system/docker.service ExecStart=/usr/bin/dockerd --graph /new-path/docker #reload配置文件 systemctl daemon-reload #重启docker systemctl restart docker.service以上为个人经验，希望能给大家一个参考，也希望大家多多支持考高分网。如有错误或未考虑完全的地方，望不吝赐教。
