Keepalived+Haproxy+Nginx Nginx实现高可用集群构建

1、组件及实现的功能Keepalived：实现对Haproxy服务的高可用，并采用双主模型配置;
Haproxy：实现对Nginx的负载均衡和读写分离;
Nginx：实现对HTTP请求的高速处理;

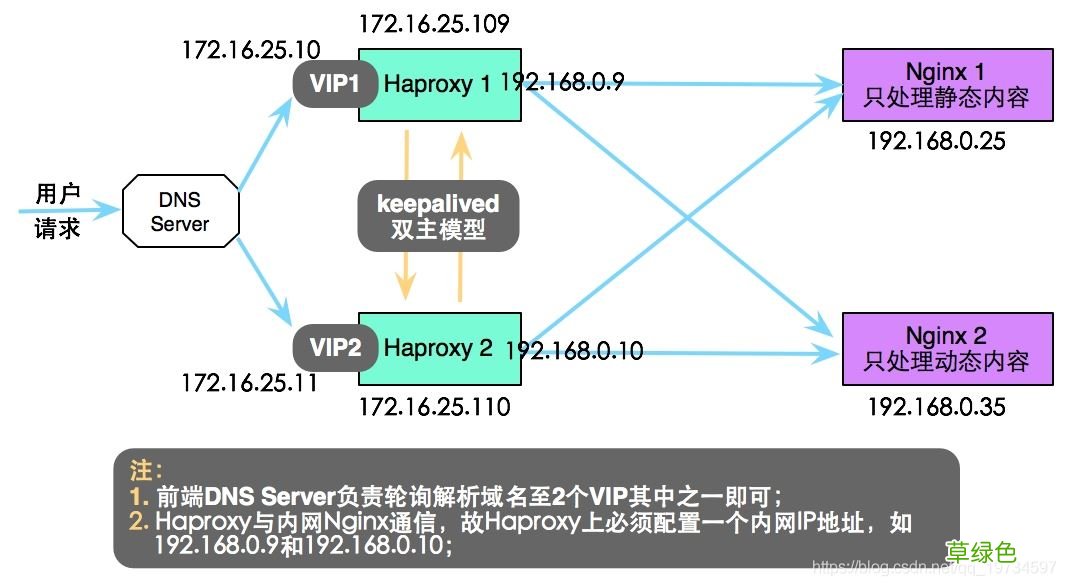

2、架构设计图

文章插图
3、Keepalived部署在两个节点上都需要执行安装keepalived，命令如下：
$ yum -y install keepalived 修改 172.16.25.109 节点上 keepalived.conf 文件配置，命令如下
$ vim /etc/keepalived/keepalived.conf修改后的内容如下：
! Configuration File for keepalivedglobal_defs {notification_email {root@localhost}notification_email_from admin@lnmmp.comsmtp_connect_timeout 3smtp_server 127.0.0.1router_id LVS_DEVEL}vrrp_script chk_maintaince_down {script "[[ -f /etc/keepalived/down ]] && exit 1 || exit 0"interval 1weight 2}vrrp_script chk_haproxy {script "killall -0 haproxy"interval 1weight 2}vrrp_instance VI_1 {interface eth0state MASTERpriority 100virtual_router_id 125garp_master_delay 1authentication { auth_type PASS auth_pass 1e3459f77aba4ded}track_interface {eth0}virtual_ipaddress { 172.16.25.10/16 dev eth0 label eth0:0}track_script { chk_haproxy}notify_master "/etc/keepalived/notify.sh master 172.16.25.10"notify_backup "/etc/keepalived/notify.sh backup 172.16.25.10"notify_fault "/etc/keepalived/notify.sh fault 172.16.25.10"}vrrp_instance VI_2 {interface eth0state BACKUPpriority 99virtual_router_id 126garp_master_delay 1authentication { auth_type PASS auth_pass 7615c4b7f518cede}track_interface {eth0}virtual_ipaddress { 172.16.25.11/16 dev eth0 label eth0:1}track_script { chk_haproxychk_maintaince_down}notify_master "/etc/keepalived/notify.sh master 172.16.25.11"notify_backup "/etc/keepalived/notify.sh backup 172.16.25.11"notify_fault "/etc/keepalived/notify.sh fault 172.16.25.11"}同理修改 172.16.25.110 节点上 keepalived.conf 配置，内容如下：
! Configuration File for keepalivedglobal_defs {notification_email {root@localhost}notification_email_from admin@lnmmp.comsmtp_connect_timeout 3smtp_server 127.0.0.1router_id LVS_DEVEL}vrrp_script chk_maintaince_down {script "[[ -f /etc/keepalived/down ]] && exit 1 || exit 0"interval 1weight 2}vrrp_script chk_haproxy {script "killall -0 haproxy"interval 1weight 2}vrrp_instance VI_1 {interface eth0state BACKUPpriority 99virtual_router_id 125garp_master_delay 1authentication { auth_type PASS auth_pass 1e3459f77aba4ded}track_interface {eth0}virtual_ipaddress { 172.16.25.10/16 dev eth0 label eth0:0}track_script { chk_haproxychk_maintaince_down}notify_master "/etc/keepalived/notify.sh master 172.16.25.10"notify_backup "/etc/keepalived/notify.sh backup 172.16.25.10"notify_fault "/etc/keepalived/notify.sh fault 172.16.25.10"}vrrp_instance VI_2 {interface eth0state MASTERpriority 100virtual_router_id 126garp_master_delay 1authentication { auth_type PASS auth_pass 7615c4b7f518cede}track_interface {eth0}virtual_ipaddress { 172.16.25.11/16 dev eth0 label eth0:1}track_script { chk_haproxy}notify_master "/etc/keepalived/notify.sh master 172.16.25.11"notify_backup "/etc/keepalived/notify.sh backup 172.16.25.11"notify_fault "/etc/keepalived/notify.sh fault 172.16.25.11"}# vi /etc/keepalived/notify.sh#!/bin/bash# Author: Jason.Yu # description: An example of notify script#contact='root@localhost'notify() {mailsubject="`hostname` to be $1: $2 floating"mailbody="`date '+%F %H:%M:%S'`: vrrp transition, `hostname` changed to be $1"echo $mailbody | mail -s "$mailsubject" $contact}case "$1" inmaster) notify master $2 /etc/rc.d/init.d/haproxy restart exit 0;;backup) notify backup $2 # 在节点切换成backup状态时，无需刻意停止haproxy服务，防止chk_maintaince和chk_haproxy多次对haproxy服务操作； exit 0;;fault) notify fault $2 # 同上 exit 0;;*) echo 'Usage: `basename $0` {master|backup|fault}' exit 1;;esac在两个节点上执行 keepalived 启动命令，命令如下：

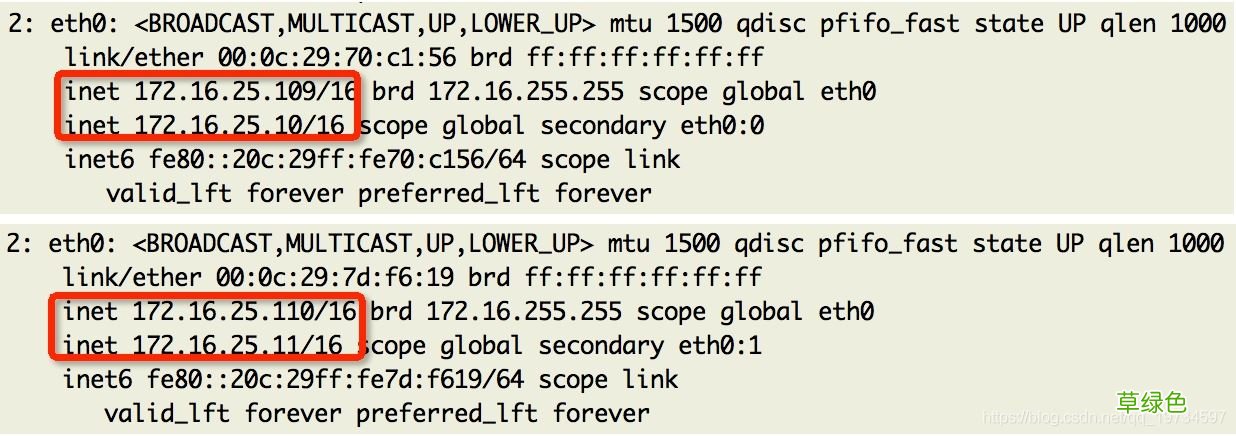

$ service keepalived start

文章插图
4、Haproxy部署在两个节点上都需要执行安装 HAProxy，命令如下：
$ yum -y install haproxy【Keepalived+Haproxy+Nginx Nginx实现高可用集群构建】修改 172.16.25.109 和 172.16.25.110 节点上 haproxy.cfg 文件配置（两节点配置文件内容一致），命令如下：
$ vim /etc/haproxy/haproxy.cfg配置文件内容如下：
globallog127.0.0.1 local2chroot/var/lib/haproxypidfile/var/run/haproxy.pidmaxconn4000userhaproxygrouphaproxydaemon # 以后台程序运行；defaultsmodehttp # 选择HTTP模式，即可进行7层过滤；logglobaloptionhttplog # 可以得到更加丰富的日志输出；optiondontlognulloption http-server-close # server端可关闭HTTP连接的功能；option forwardfor except 127.0.0.0/8 # 传递client端的IP地址给server端，并写入“X-Forward_for”首部中；optionredispatchretries3timeout http-request10stimeout queue1mtimeout connect10stimeout client1mtimeout server1mtimeout http-keep-alive 10stimeout check10smaxconn30000listen statsmode httpbind 0.0.0.0:1080 # 统计页面绑定1080端口；stats enable # 开启统计页面功能；stats hide-version # 隐藏Haproxy版本号；stats uri/haproxyadmin?stats # 自定义统计页面的访问uri；stats realmHaproxy\ Statistics # 统计页面密码验证时的提示信息；stats authadmin:admin # 为统计页面开启登录验证功能；stats admin if TRUE # 若登录用户验证通过，则赋予管理功能；frontend http-inbind *:80mode httplog globaloption httpcloseoption logasapoption dontlognullcapture requestheader Host len 20capture requestheader Referer len 60acl url_staticpath_beg-i /static /p_w_picpaths /javascript /stylesheetsacl url_staticpath_end-i .jpg .jpeg .gif .png .css .js .htmluse_backend static_servers if url_static # 符合ACL规则的，请求转入后端静态服务器default_backend dynamic_servers # 默认请求转入后端动态服务器backend static_serversbalance roundrobinserver imgsrv1 192.168.0.25:80 check maxconn 6000 # 静态服务器，可配置多台，还可设置权重weight；backend dynamic_serversbalance source # 对于动态请求利用source调度算法，可一定程度上实现session保持；但最好利用cookie绑定的方式实现session保持server websrv1 192.168.0.35:80 check maxconn 1000 # 动态服务器，可配置多台，还可设置权重weight；两个节点执行启动服务，命令如下：
$ service haproxy start5、Nginx部署yum -y groupinstall “Development tools”yum -y groupinstall “Server Platform Development”yum install gcc openssl-devel pcre-devel zlib-develgroupadd -r nginxuseradd -r -g nginx -s /sbin/nologin -M nginxtar xf nginx-1.4.7.tar.gzcd nginx-1.4.7mkdir -pv /var/tmp/nginx./configure \--prefix=/usr \--sbin-path=/usr/sbin/nginx \--conf-path=/etc/nginx/nginx.conf \--error-log-path=/var/log/nginx/error.log \--http-log-path=/var/log/nginx/access.log \--pid-path=/var/run/nginx/nginx.pid\--lock-path=/var/lock/nginx.lock \--user=nginx \--group=nginx \--with-http_ssl_module \--with-http_flv_module \--with-http_stub_status_module \--with-http_gzip_static_module \--http-client-body-temp-path=/var/tmp/nginx/client/ \--http-proxy-temp-path=/var/tmp/nginx/proxy/ \--http-fastcgi-temp-path=/var/tmp/nginx/fcgi/ \--http-uwsgi-temp-path=/var/tmp/nginx/uwsgi \--http-scgi-temp-path=/var/tmp/nginx/scgi \--with-pcremake && make install配置服务脚本
vi /etc/init.d/nginx # 配置服务脚本#!/bin/sh## nginx - this script starts and stops the nginx daemon## chkconfig:- 85 15# description:Nginx is an HTTP(S) server, HTTP(S) reverse \# proxy and IMAP/POP3 proxy server# processname: nginx# config:/etc/nginx/nginx.conf# config:/etc/sysconfig/nginx# pidfile:/var/run/nginx.pid# Source function library.. /etc/rc.d/init.d/functions# Source networking configuration.. /etc/sysconfig/network# Check that networking is up.[ "$NETWORKING" = "no" ] && exit 0nginx="/usr/sbin/nginx"prog=$(basename $nginx)NGINX_CONF_FILE="/etc/nginx/nginx.conf"[ -f /etc/sysconfig/nginx ] && . /etc/sysconfig/nginxlockfile=/var/lock/subsys/nginxmake_dirs() {# make required directoriesuser=`nginx -V 2>&1 | grep "configure arguments:" | sed 's/[^*]*--user=$[^ ]*$.*/\1/g' -`options=`$nginx -V 2>&1 | grep 'configure arguments:'`for opt in $options; doif [ `echo $opt | grep '.*-temp-path'` ]; thenvalue=https://tazarkount.com/read/`echo $opt | cut -d"=" -f 2`if [ ! -d "$value" ]; then # echo "creating" $value mkdir -p $value && chown -R $user $valuefifidone}start() {[ -x $nginx ] || exit 5[ -f $NGINX_CONF_FILE ] || exit 6make_dirsecho -n $"Starting $prog: "daemon $nginx -c $NGINX_CONF_FILEretval=$?echo[ $retval -eq 0 ] && touch $lockfilereturn $retval}stop() {echo -n $"Stopping $prog: "killproc $prog -QUITretval=$?echo[ $retval -eq 0 ] && rm -f $lockfilereturn $retval}restart() {configtest || return $?stopsleep 1start}reload() {configtest || return $?echo -n $"Reloading $prog: "killproc $nginx -HUPRETVAL=$?echo}force_reload() {restart}configtest() {$nginx -t -c $NGINX_CONF_FILE}rh_status() {status $prog}rh_status_q() {rh_status >/dev/null 2>&1}case "$1" instart) rh_status_q && exit 0 $1 ;;stop) rh_status_q || exit 0 $1 ;;restart|configtest) $1 ;;reload) rh_status_q || exit 7 $1 ;;force-reload) force_reload ;;status) rh_status ;;condrestart|try-restart) rh_status_q || exit 0;;*) echo $"Usage: $0 {start|stop|status|restart|condrestart|try-restart|reload|force-reload|configtest}" exit 2esacchmod +x /etc/init.d/nginx # 复***务脚本执行权限vi /etc/nginx/nginx.conf # 编辑主配置文件worker_processes2;error_log/var/log/nginx/nginx.error.log;pid /var/run/nginx.pid;events {worker_connections1024;}http {includemime.types;default_typeapplication/octet-stream;log_formatmain'$remote_addr - $remote_user [$time_local] "$request" ' '$status $body_bytes_sent "$http_referer" ' '"$http_user_agent" "$http_x_forwarded_for"';sendfile on;keepalive_timeout65;server { listen80; server_namexxrenzhe.lnmmp.com; access_log/var/log/nginx/nginx.access.logmain; location / {root/www/lnmmp.com;indexindex.php index.html index.htm; } error_page404/404.html; error_page500 502 503 504/50x.html; location = /50x.html {root/www/lnmmp.com; } location ~ \.php$ {root/www/lnmmp.com;fastcgi_pass127.0.0.1:9000;fastcgi_indexindex.php;fastcgi_paramSCRIPT_FILENAME$document_root$fastcgi_script_name;include fastcgi_params; }}}vi /etc/nginx/fastcgi_params # 编辑fastcgi参数文件fastcgi_paramGATEWAY_INTERFACECGI/1.1;fastcgi_paramSERVER_SOFTWAREnginx;fastcgi_paramQUERY_STRING$query_string;fastcgi_paramREQUEST_METHOD$request_method;fastcgi_paramCONTENT_TYPE$content_type;fastcgi_paramCONTENT_LENGTH$content_length;fastcgi_paramSCRIPT_FILENAME$document_root$fastcgi_script_name;fastcgi_paramSCRIPT_NAME $fastcgi_script_name;fastcgi_paramREQUEST_URI $request_uri;fastcgi_paramDOCUMENT_URI$document_uri;fastcgi_paramDOCUMENT_ROOT$document_root;fastcgi_paramSERVER_PROTOCOL$server_protocol;fastcgi_paramREMOTE_ADDR $remote_addr;fastcgi_paramREMOTE_PORT $remote_port;fastcgi_paramSERVER_ADDR $server_addr;fastcgi_paramSERVER_PORT $server_port;fastcgi_paramSERVER_NAME $server_name;启动服务

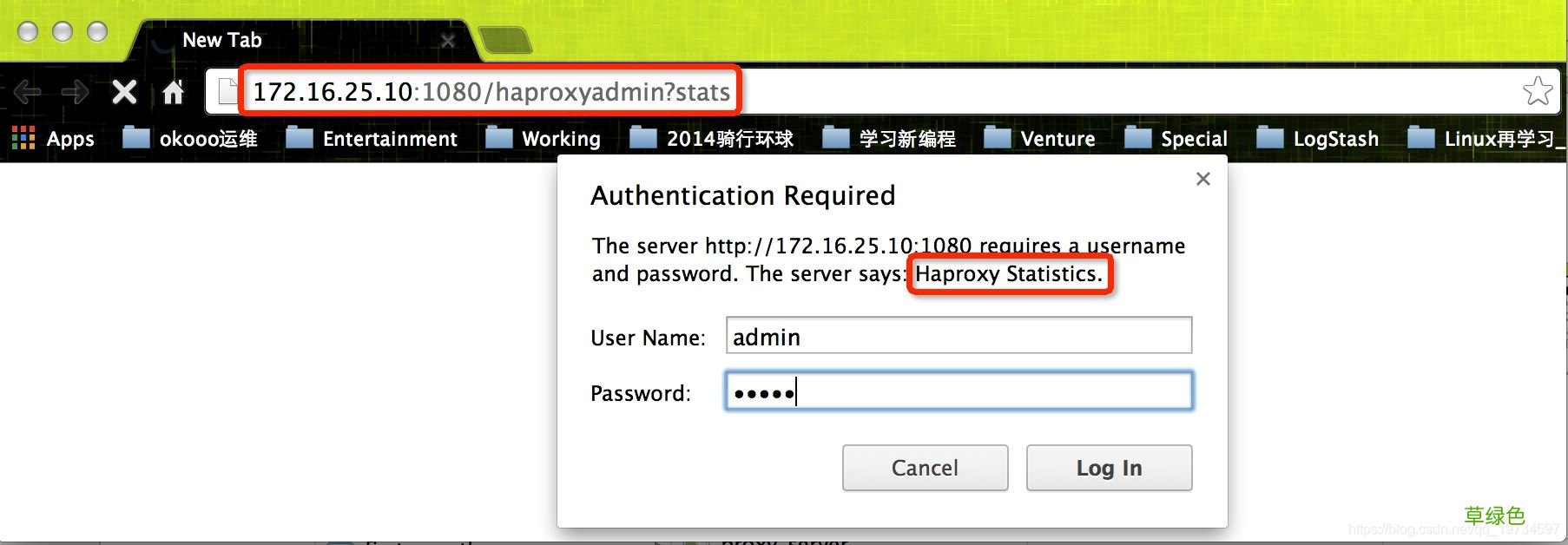

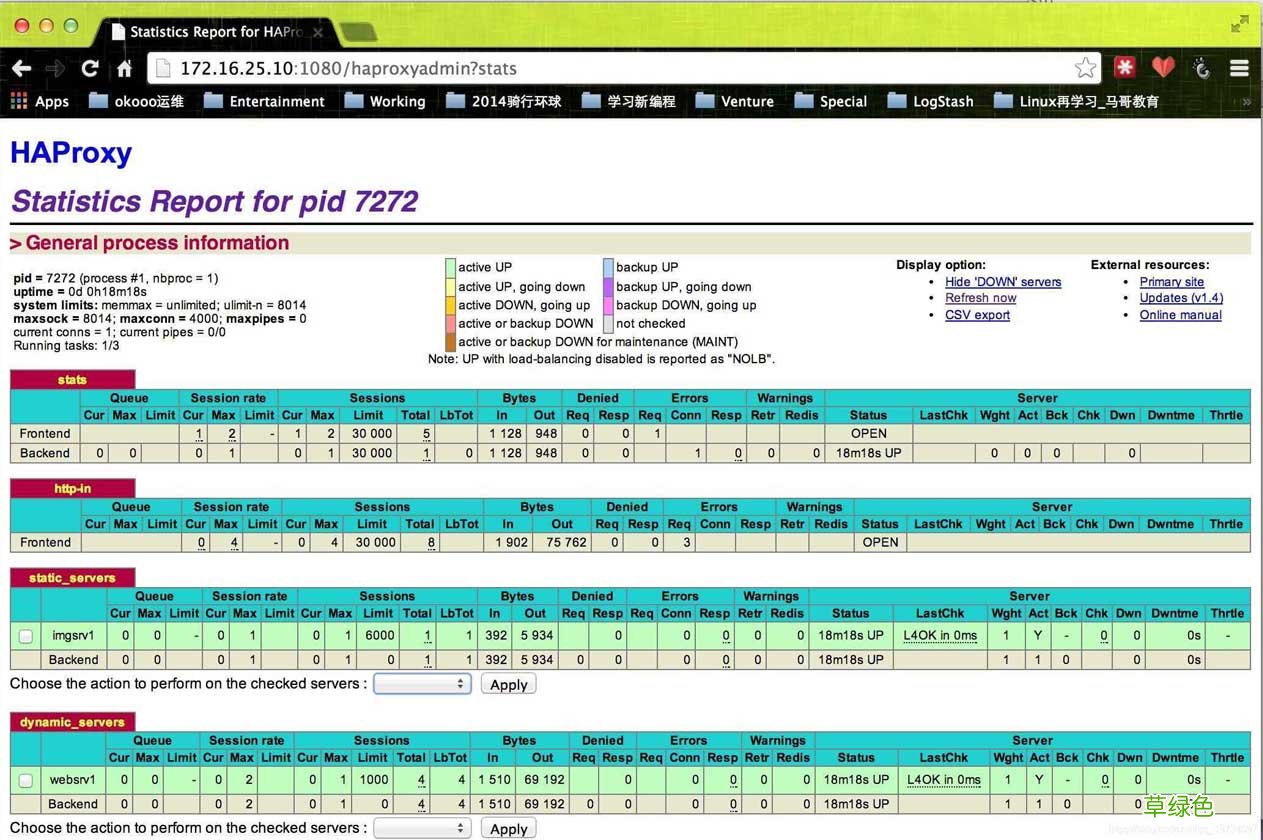

service nginx configtest # 服务启动前先验证配置文件是否正确service nginx startps -ef |grep nginx # 检查nginx进程，尤其是worker进程是否与worker_processes值一致ss -antupl |grep 80 # 检查服务端口是否启动6、访问验证Haproxy 统计页面测试

文章插图

文章插图

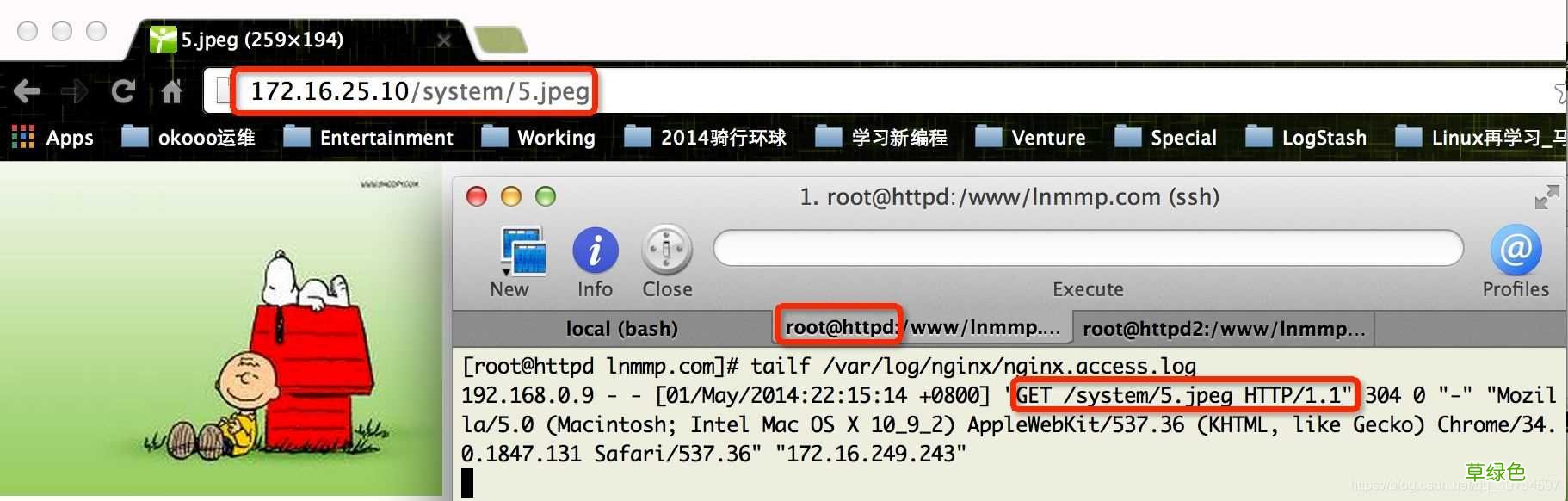

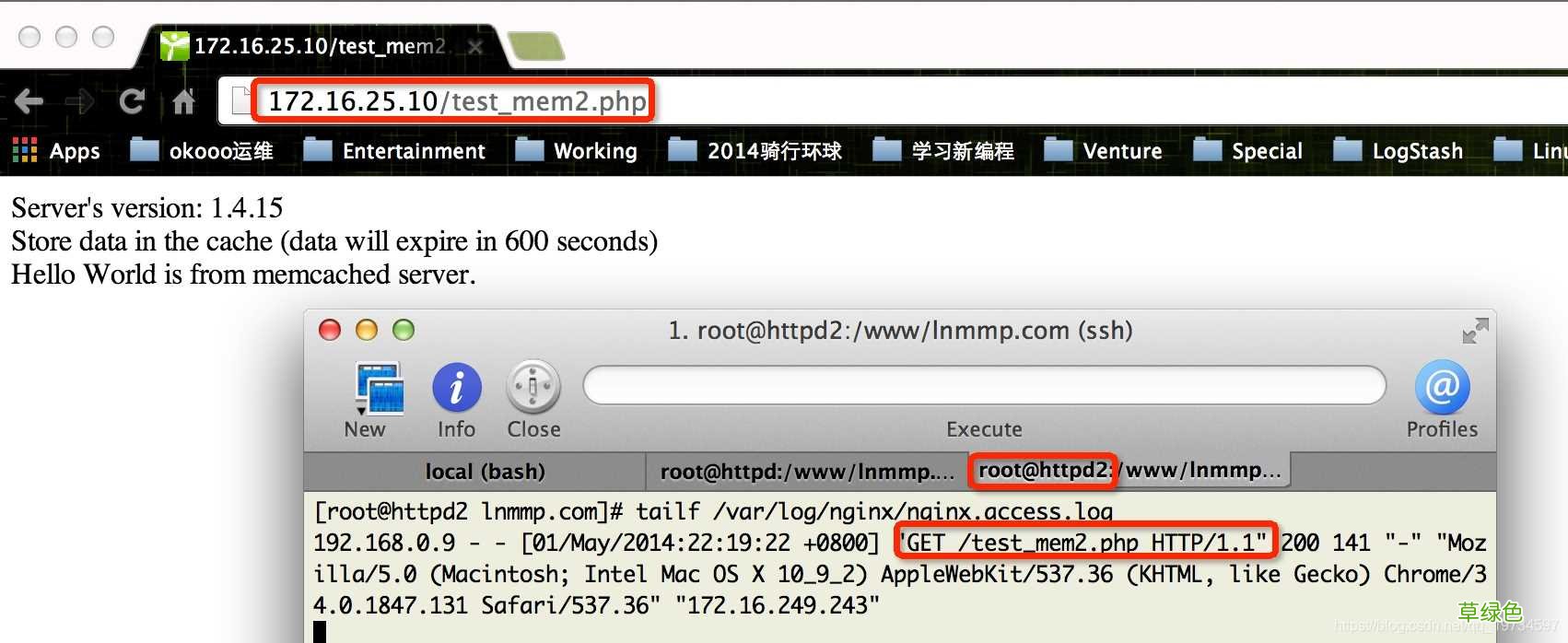

动静分离测试

文章插图

文章插图

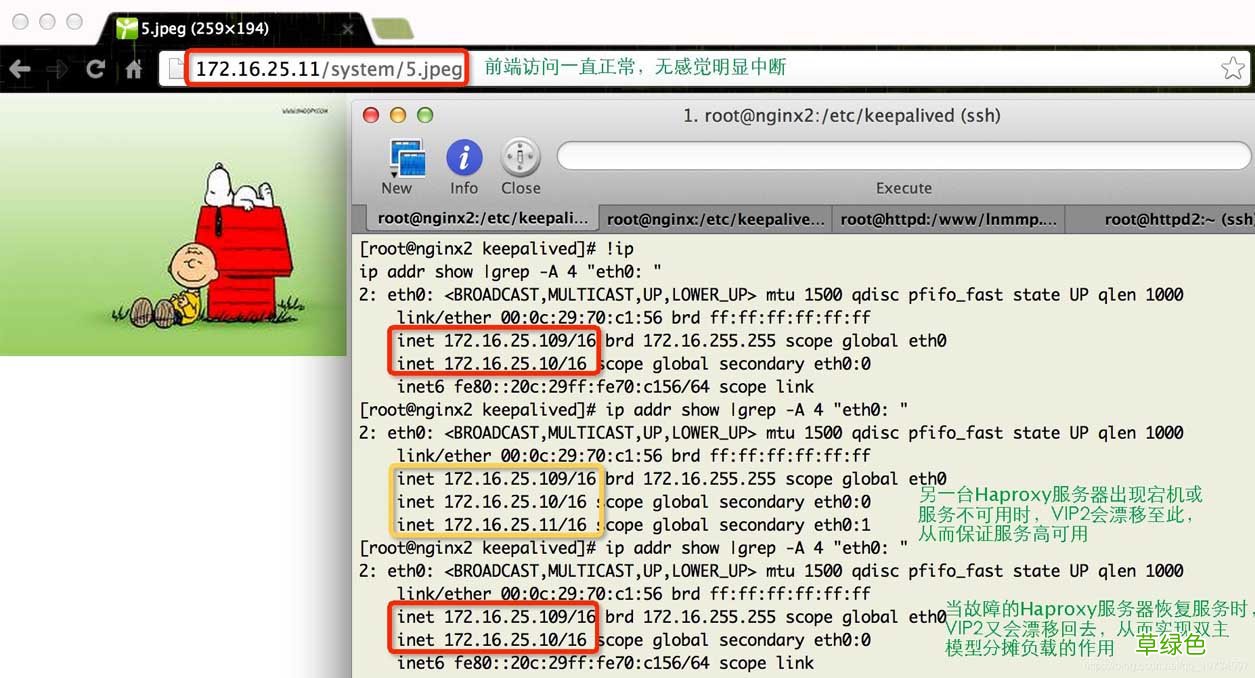

高可用测试

文章插图
到此 Nginx高可用集群构建（Keepalived+Haproxy+Nginx）介绍完成。
